NH-405
NH-405

NH-405

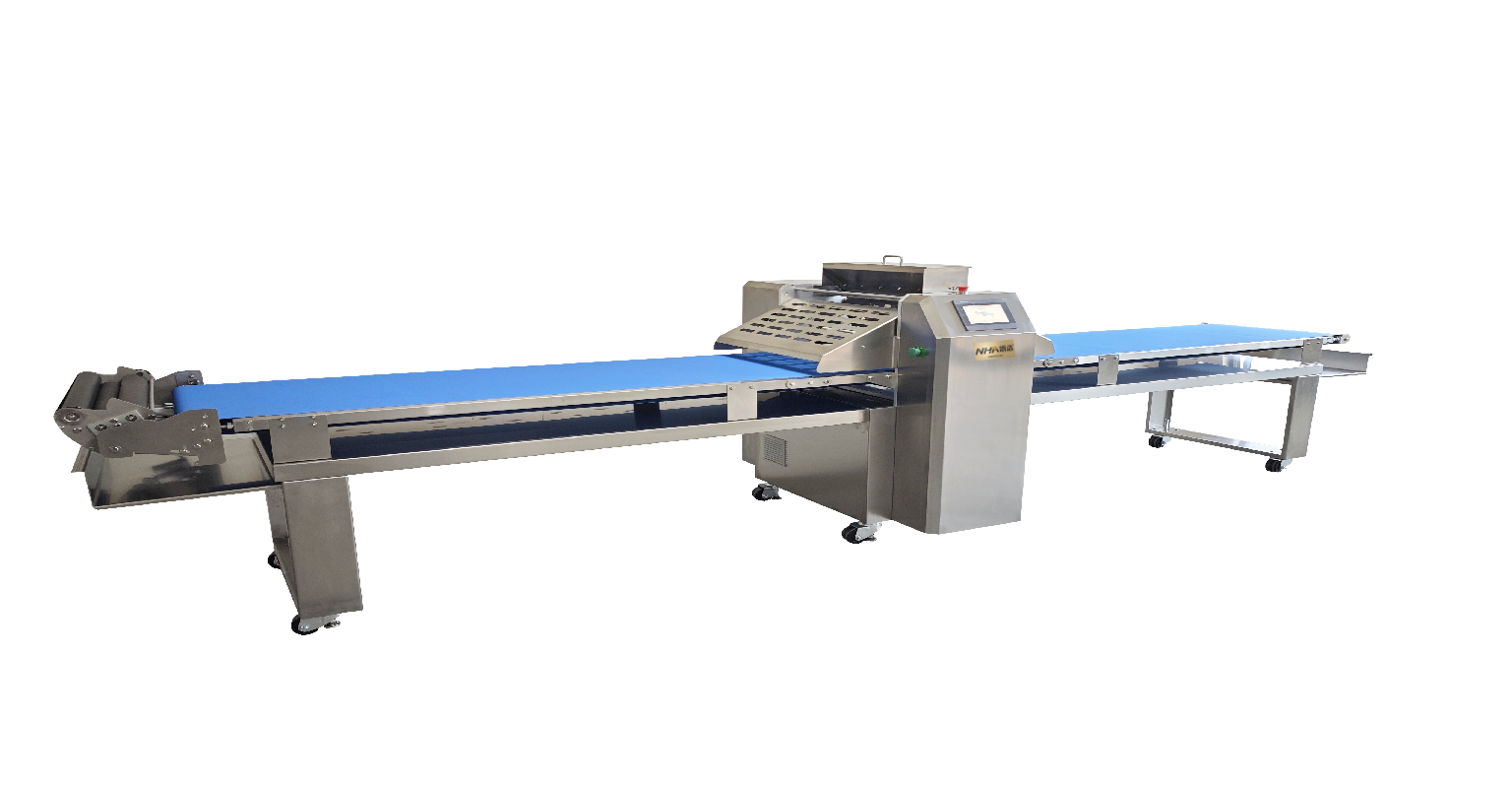

Fully Automatic Laminator

Features:
Suitable for croissants, Danish pastries, mille-feuille, butterfly pastries,
mooncake crust, apple pie, and other pastries requiring flaky pastry.
PLC+HMI intelligent operation.
Left and right belts are driven by two
servo motors, with independently
adjustable speeds.
Rollers are independently driven by
high-power motors, providing strong
rolling pressure.
Servo-controlled roller lifting ensures
even thickness and a uniform sheet of dough.
No dough stretching (rollers, left and right belts,
adjustable speed matching).
Product name input in both Chinese and English to
prevent parameter errors.
Optional automatic flour sprinkling and automatic
dough rolling functions.
Machine body made of 304 stainless steel, belts
made of food-grade PU material.

Video Showcase

视频展示
Play

We uphold the business philosophy of "customer first, service foremost" and are committed to providing our customers with the highest quality products and services.

Croissant

Croissant

Palmier

Puff pastry bread

Mille-feuille

Crispy Egg Tart

Main Equipment Configuration

Touchscreen:

Taiwan Weinview

PLC:

Japan Mitsubishi

Servo Motor:

Delta or other brands of equivalent quality

Electrical:

Omron, Chint, Schneider

Main Body Materials:

Stainless Steel 304/ Aluminum 6061

Core Parameters

Model
Specification
Voltage (V)
Power  (kw)
Weight(kg)
Max Rolling Weight(kg)
Dimension(mm)
NH-405 650A 380V 4KW 500 15 4850×1320×1345mm
650B 380V 3KW 450 10 3650×1320×1345mm

Swipe left to see more.
